MicroControl

Our Micro Controller P.C.B.'s (Printed Circuit Boards) are designed and built in house to specific requirements. They all feature Opto Coupled inputs and Outputs to protect the 'Core' devices. Where applicable all I.C.'s (Integrated Circuits) are socketed facilitating easy removal (not applicable for Surface Mount Based Controllers). A 'Core' microcontroller is chosen depending on the proposed application environment. All ancillary components e.g. Connectors, Mounting Devices can be specified. Components selected are RoHS compliant. Various communication protocols can be incorporated in the design Serial, USB, Ethernet, CAN, OBD and I2C.

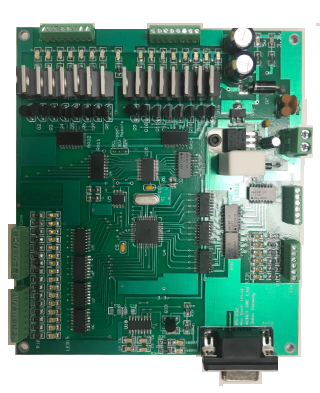

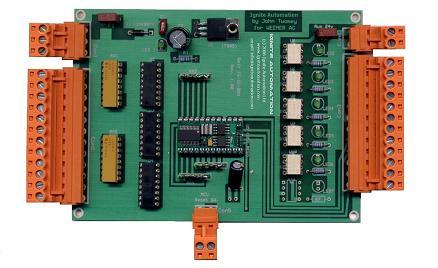

Custom MicroController based 24v DC Digitial I/O Board

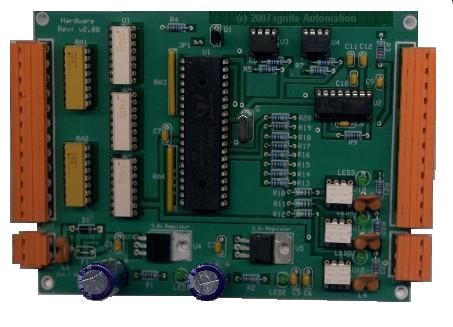

                                                  Through Hole Design required by customer
